HMI package + charger 80A + battery 150Ah
| Art.No.: | CCE004 |
| Weight: | 21350 |
| Manufacturer: | CaraControl |
With the HMI Package, you can enjoy App functions listed below. Some of them require the additional products to be purchased.
Statuses:
Inside temperature (only with Truma or Alde panel), Outside temperature, Ext. 230V, Solar panel, Tilt front and side, Leisure battery capacity and time remaining, Car battery voltage, Gas level (optional with gas pad CCG003), Fresh water level and Waste water level (need optional wirings)
Controls:
Battery switch 195A, 2 Auxiliary outputs, 9 Interior lights with dimmer, Awning light with dimmer, Thermostat (for Truma or Alde panels), Boiler (for Truma or Alde panels), Auxiliary heater, Waste water tank heater, Air conditon (optional product CCA009), Air exchanger, Pump
Alarm functions:
Security modes (On/Night/Travel), Tilt alarm, Driver authorization function (optional with CCS001), Wireless security sensors function (optional product CCS002), Keyless Go function (optional product CCS001), Siren (optional product CCS003), Electric lock
GNSS positioning service (GPS, Galileo, Glonass and Beidou constelations)
Alarm inputs for connecting with third party alarm system such as Thitronik G.A.S.-pro or similar:
Generic alarm / Panic button, Gas sensor, Smoke sensor, Motion sensor
Notice: For remote control via our global VPN network, it is necessary to purchase the tariff plan of the prepaid service after installation in the Services section.
You can of course control your RV localy only using Bluetooth free of charge.
CaraControl on-board unit v3
Art.No.: CCA001 On-board unit, the brain of the entire system, connects your RV appliances and external devices with the CaraControl App and allows you to control them like a smart home, locally using Bluetooth or remotely via LPWA networks. detail
CaraControl HMI control panel
Art.No.: CCH001 CaraControl HMI control panel made of premium glossy glass comes with RGB LED backlighted capacitive controls and proximity sensor which enables touch-less quick access to the statuses of your RV. With its low operating temperature and low-power consumption it is ideal for van conversions or retrofit. Thanks to its smart and simple design it will rid you off an uncomfortable brightness, high power consumption, and software related issues of today's commonly used LCD panels. The panel mirrors the dashboard of the CaraControl App and what ever you change on this panel will appear in the App or vice versa. detail

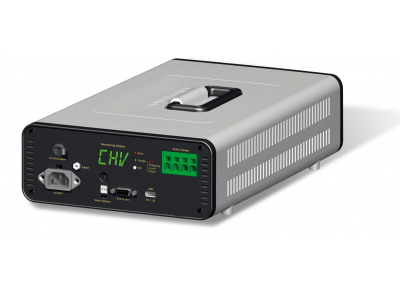

CaraControl AC/DC Charger, 12V/80A
Art.No.: CCE011 CaraControl AC/DC Charger is high-quality industrial class charger based on Infineon chipset offers up to 80A of charging current to ensure your board battery will be charged really fast. It has easily configurable battery type using DIP switches, mini circuit breaker or LED status display. You can also interconnect with CaraControl unit to control its charging power and set it eg. into a night mode to avoid its fan noise when sleeping. detail
Battery relay 195A
Art.No.: CCW018 This bi-stable low-power relay is meant to be used when you do not own any of the supported electroblocks or you want to use CaraControl instead of electroblock, eg. for custom van conversion. It offers switching current of up to 195 Amps. detail

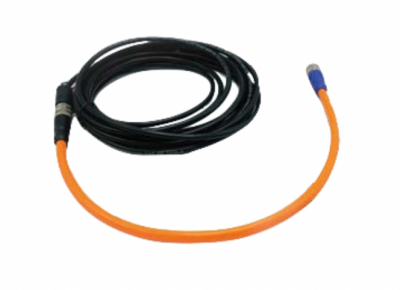

Super B Epsilon / Nomia communication cable 5m
Art.No.: CCW031 This cable allows you to read your Super B battery data using CaraControl device. The supported models are Super B batteries Epsilon and Nomia. detail

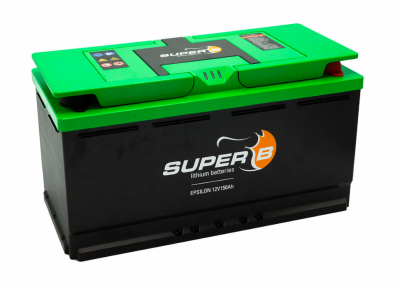

Super B Epsilon 12V/150Ah
Art.No.: CCB001 The Epsilon 12V150Ah battery weighs 16 kg and has a rated capacity of 150Ah. Include smart heating functionality for charging <0°C. detail
Power wiring
Art.No.: CCW001 Basic wiring for connecting the CaraControl onboard unit. It includes power leads, output for waste water tank heating, output for water pump control, output for ventilator (air exchanger) and output for siren. detail
I/O wiring
Art.No.: CCW002 This wiring allows you to control auxiliary heater, 2 user defined outputs, electric lock and read the status of electric plug, solar panel and car battery voltage. detail
Alarm inputs wiring
Art.No.: CCW003 This wiring allows the connection of four separate third-party alarm devices such as Thitronik WiPro, Thitronik G.A.S.-pro or similar, according to the type of alarm. It also scans the main 12V power-on switch signal and up to 5 mechanical switches. detail
Lighting control wiring 6A
Art.No.: CCW005 Facilitates controlling possibilities of 5 light circuits up to 6 Amps of current per channel. One channel is reserved for awning light. detail
ISM antenna 0-90° SMA
Art.No.: CCA007 This antenna facilitates the distribution of ISM network between our accessories. detail
Self-adhesive GNSS antenna
Art.No.: CCA008 This antenna connected to CaraControl unit v3 allows you to request your vehicle's location and display it on the map. detail
Truma/Alde iNet cable 5m
Art.No.: CCW007 This wiring connects to your Truma or Alde 3020/3030 iNet ready panel to give you control over its basic functions. detail
Alde 3010/3020 cable 5m
Art.No.: CCW006 This wiring connects to your Alde heating 3010/3020 panel (not iNet ready) to give you control over its basic functions. detail
Temperature sensor 2m
Art.No.: CCA003 This sensor measures the outer temperature and the values are displayed in CaraControl application. detail
NB-IoT SIM card
Art.No.: CCSIM This special SIM card for IoT applications allows CaraControl unit to register within Narrowband or LTE-M networks around the globe. detail
Self-adhesive LPWA antenna
Art.No.: CCA006 This antenna facilitates the distribution of GSM/LPWA network. detail
